Berkeley deck framing

Freestanding deck frame. The ledger is a lateral tie only. Beams carry the gravity load to new footings.

Built on Berkeley deck and stair

Drag to pan. Toggle layers.

HELIX FRAME & SIDINGS1.2 Berkeley deck framing18 ft by 12 ftLedger is lateral only1. Double rim on the yard edge where the stair header lands2. Joists 12 inches on center under the cedar picture frame3. Post bases set before any beam is rolled

Before and after

After: Berkeley deck framing
BeforeAfter

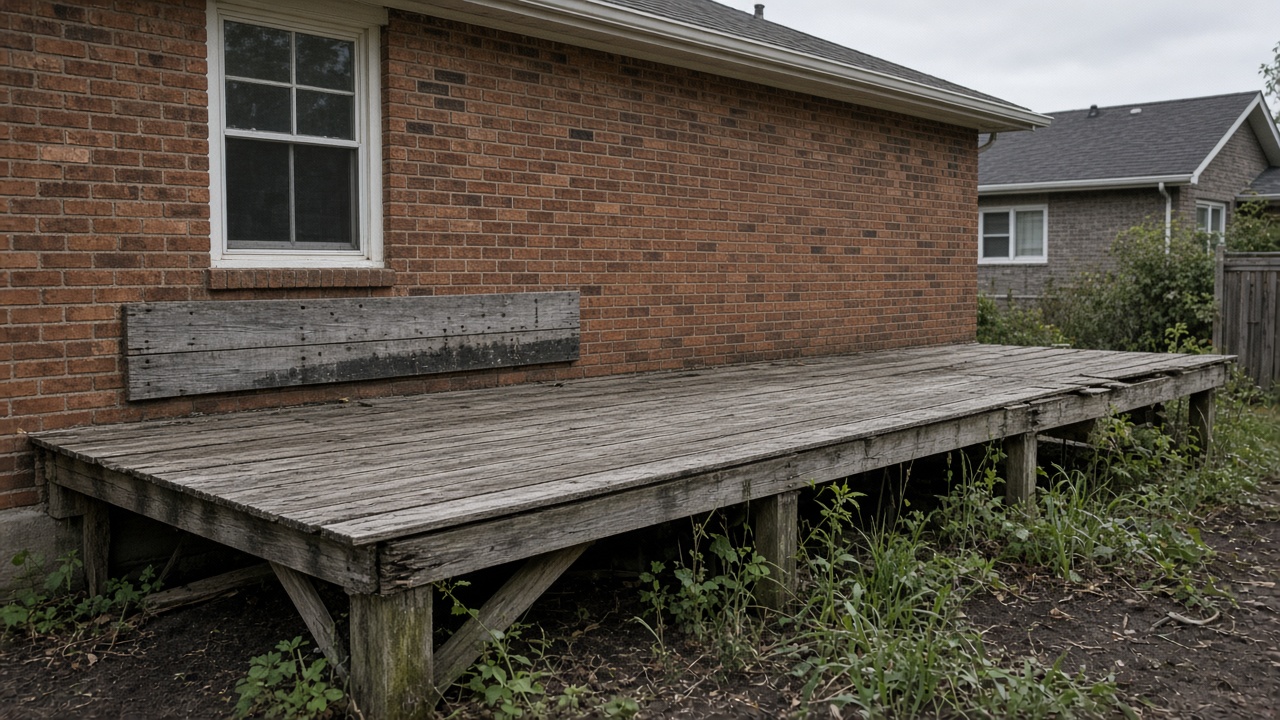

The sagging ledger deck, then the freestanding frame on new piers.
