Sheet A6.0

Addition roof tie-in

Building section through the new ridge and the existing bungalow roof. The valley is framed, not overframed onto the old rafters.

Built on Sloan's Lake rear addition

Drag to pan. Toggle layers.

HELIX FRAME & SIDINGA6.0 Addition roof tie-inSister rafters 4 ftValley framed, not overframed1. Existing rafters sistered for four feet back from the tie-in2. Cricket framed before shingles, coordinated with Ridgeline3. New wall sheathing laps the existing weather barrier by 6 inches

Before and after

After: Addition roof tie-in
BeforeAfter

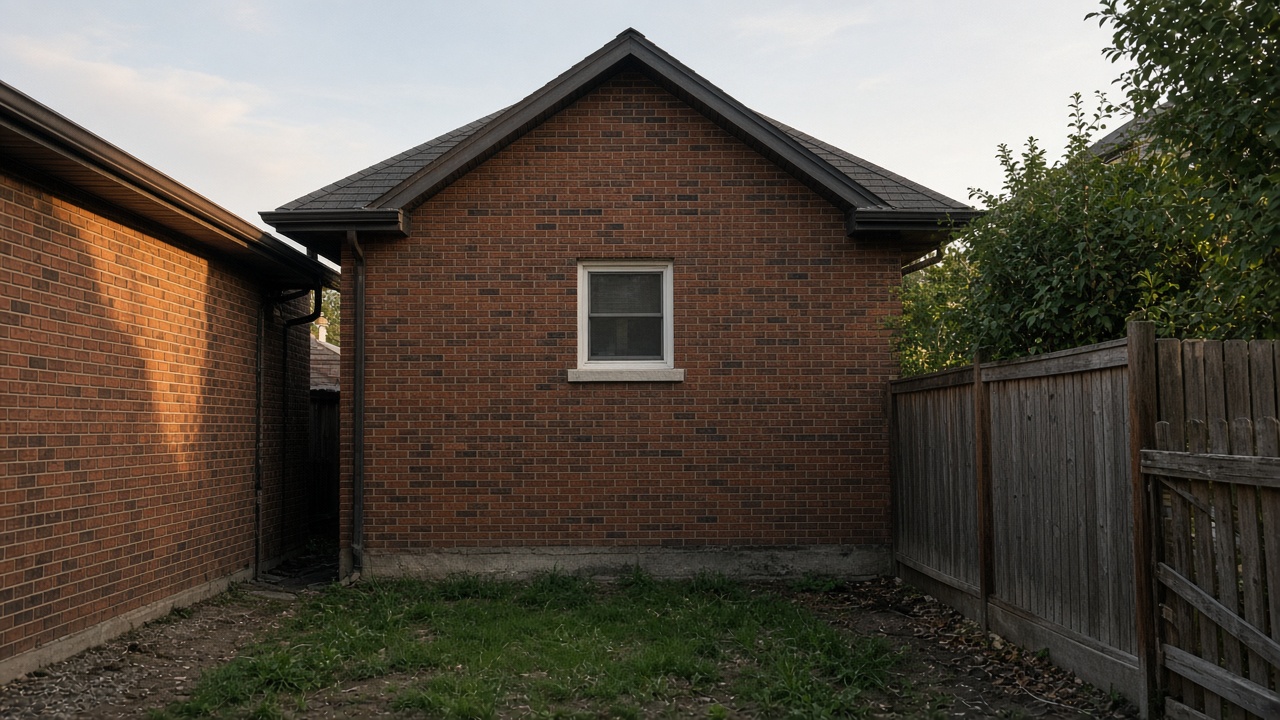

The bungalow roof alone, then the valley and cricket at the tie-in.
